FA87R57DM71S4詳細信息
FA87R57DM71S4
關鍵詞：0.12KW適配平行軸斜齒輪減速機_FA87R57DM71S4_FA87R57DRS63L4
FA87R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA87R57DM71S4 | 1930 | 0.25KW | 0.67r/min | 3130N.m | 178kg | 13500N | 0.95 |
| FA87R57DM71S4 | 1709 | 0.25KW | 0.76r/min | 2790N.m | 178kg | 23700N | 1.05 |
| FA87R57DM71S4 | 1493 | 0.25KW | 0.87r/min | 2440N.m | 178kg | 25000N | 1.25 |
| FA87R57DM71S4 | 1300 | 0.25KW | 1.00r/min | 2050N.m | 178kg | 26300N | 1.45 |
| FA87R57DM71S4 | 1148 | 0.25KW | 1.10r/min | 1830N.m | 178kg | 26900N | 1.65 |
| FA87R57DM71S4 | 1010 | 0.25KW | 1.30r/min | 1590N.m | 178kg | 27600N | 1.90 |
| FA87R57DM71S4 | 887 | 0.25KW | 1.50r/min | 1410N.m | 178kg | 28000N | 2.10 |
| FA87R57DM71S4 | 780 | 0.25KW | 1.70r/min | 1230N.m | 178kg | 28500N | 2.40 |
| FA87R57DM71S4 | 674 | 0.25KW | 1.90 r/min | 1040N.m | 178kg | 28900N | 2.90 |
FA87R57DRS63L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA87R57DRS63L4 | 2576 | 0.18KW | 0.51r/min | 2920N.m | 174kg | 22300N | 1.00 |
| FA87R57DRS63L4 | 2199 | 0.18KW | 0.60r/min | 2490N.m | 174kg | 24800N | 1.20 |
| FA87R57DRS63L4 | 1930 | 0.18KW | 0.68r/min | 2160N.m | 174kg | 25900N | 1.40 |
| FA87R57DRS63L4 | 1709 | 0.18KW | 0.77r/min | 1930N.m | 174kg | 26600N | 1.55 |
| FA87R57DRS63L4 | 1493 | 0.18KW | 0.88r/min | 1690N.m | 174kg | 27300N | 1.75 |
| FA87R57DRS63L4 | 1300 | 0.18KW | 1.00r/min | 1390N.m | 174kg | 28100N | 2.10 |
| FA87R57DRS63L4 | 1148 | 0.18KW | 1.20r/min | 1250N.m | 174kg | 28400N | 2.40 |
| FA87R57DRS63L4 | 1010 | 0.18KW | 1.30r/min | 1080N.m | 174kg | 28800N | 2.80 |
| FA87R57DRS63L4 | 887 | 0.18KW | 1.50r/min | 970N.m | 174kg | 29000N | 3.10 |
| FA87R57DRS63L4 | 780 | 0.18KW | 1.70r/min | 830N.m | 174kg | 29300N | 3.60 |
FA87R57DM71S4減速機電動機類型：
F87R57DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA87BR57DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV87BR57DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA87R57DM71S4空心軸安裝平行軸—斜齒輪減速機
FV87R57DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF87R57DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF87R57DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ87R57DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ87R57DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF87R57DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH87BR57DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH87R57DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF87R57DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ87R57DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

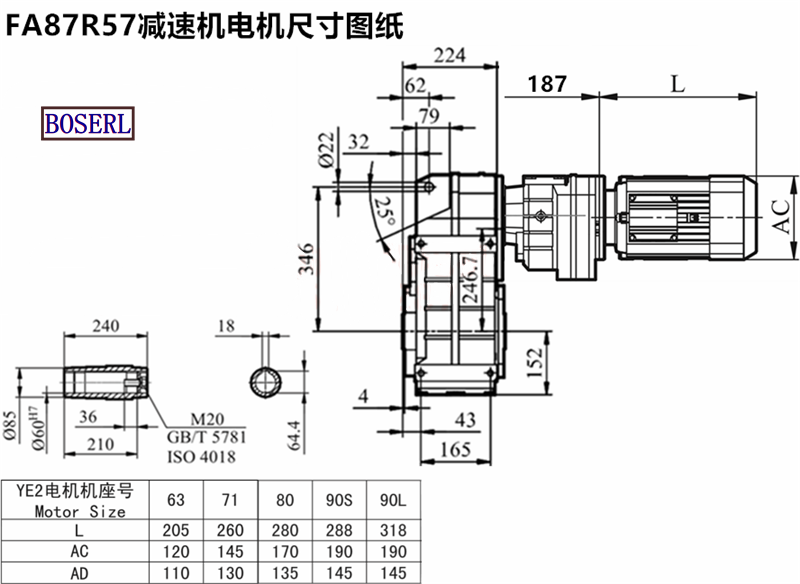

FA87R57DM71S4減速機電動機安裝尺寸圖紙
FA87R57DM71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.12KW適配平行軸斜齒輪減速機 FA87R57DM71S4 FA87R57DRS63L4
