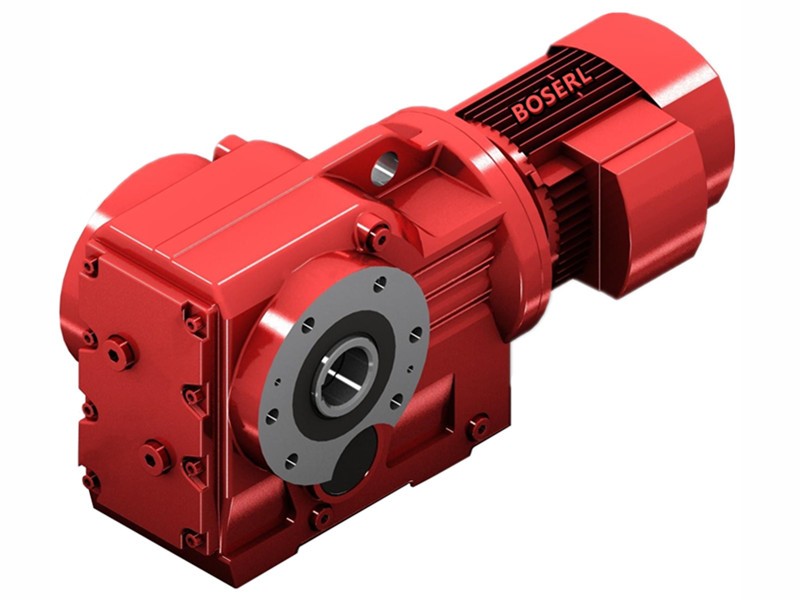

K87DRN180LC4詳細信息
K87DRN180LC4
關鍵詞：22千瓦電動機減速機_K87DRN180LC4_K87DRE180LC4
K87DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K87DRN180LC4 | 31.39 | 15KW | 47rpm | 3080N.m | 205Kg | 17300N | 0.9 |
| K87DRN180LC4 | 27.88 | 15KW | 52rpm | 2730N.m | 205Kg | 17600N | 0.95 |
| K87DRN180LC4 | 24.92 | 15KW | 59rpm | 2440N.m | 205Kg | 17800N | 1 |
| K87DRN180LC4 | 22.41 | 15KW | 65rpm | 2200N.m | 205Kg | 18000N | 1.05 |
| K87DRN180LC4 | 19.45 | 15KW | 75rpm | 1910N.m | 205Kg | 18000N | 1.2 |
| K87DRN180LC4 | 17.42 | 15KW | 84rpm | 1710N.m | 205Kg | 18000N | 1.3 |
| K87DRN180LC4 | 16 | 15KW | 91rpm | 1570N.m | 205Kg | 16800N | 1.15 |
| K87DRN180LC4 | 14.45 | 15KW | 101rpm | 1420N.m | 205Kg | 17800N | 1.5 |
| K87DRN180LC4 | 12.56 | 15KW | 116rpm | 1230N.m | 205Kg | 17600N | 1.6 |
| K87DRN180LC4 | 11.17 | 15KW | 131rpm | 1100N.m | 205Kg | 16600N | 1.35 |
| K87DRN180LC4 | 10 | 15KW | 146rpm | 980N.m | 205Kg | 16400N | 1.55 |
| K87DRN180LC4 | 8.29 | 15KW | 176rpm | 810N.m | 205Kg | 16000N | 1.7 |
| K87DRN180LC4 | 7.21 | 15KW | 202rpm | 705N.m | 205Kg | 15700N | 1.85 |
K87DRE180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K87DRE180LC4 | 31.39 | 15KW | 47rpm | 3080N.m | 205Kg | 17300N | 0.9 |
| K87DRE180LC4 | 27.88 | 15KW | 52rpm | 2730N.m | 205Kg | 17600N | 0.95 |
| K87DRE180LC4 | 24.92 | 15KW | 59rpm | 2440N.m | 205Kg | 17800N | 1 |
| K87DRE180LC4 | 22.41 | 15KW | 65rpm | 2200N.m | 205Kg | 18000N | 1.05 |
| K87DRE180LC4 | 19.45 | 15KW | 75rpm | 1910N.m | 205Kg | 18000N | 1.2 |
| K87DRE180LC4 | 17.42 | 15KW | 84rpm | 1710N.m | 205Kg | 18000N | 1.3 |
| K87DRE180LC4 | 16 | 15KW | 91rpm | 1570N.m | 205Kg | 16800N | 1.15 |
| K87DRE180LC4 | 14.45 | 15KW | 101rpm | 1420N.m | 205Kg | 17800N | 1.5 |
| K87DRE180LC4 | 12.56 | 15KW | 116rpm | 1230N.m | 205Kg | 17600N | 1.6 |
| K87DRE180LC4 | 11.17 | 15KW | 131rpm | 1100N.m | 205Kg | 16600N | 1.35 |
| K87DRE180LC4 | 10 | 15KW | 146rpm | 980N.m | 205Kg | 16400N | 1.55 |
| K87DRE180LC4 | 8.29 | 15KW | 176rpm | 810N.m | 205Kg | 16000N | 1.7 |
| K87DRE180LC4 | 7.21 | 15KW | 202rpm | 705N.m | 205Kg | 15700N | 1.85 |

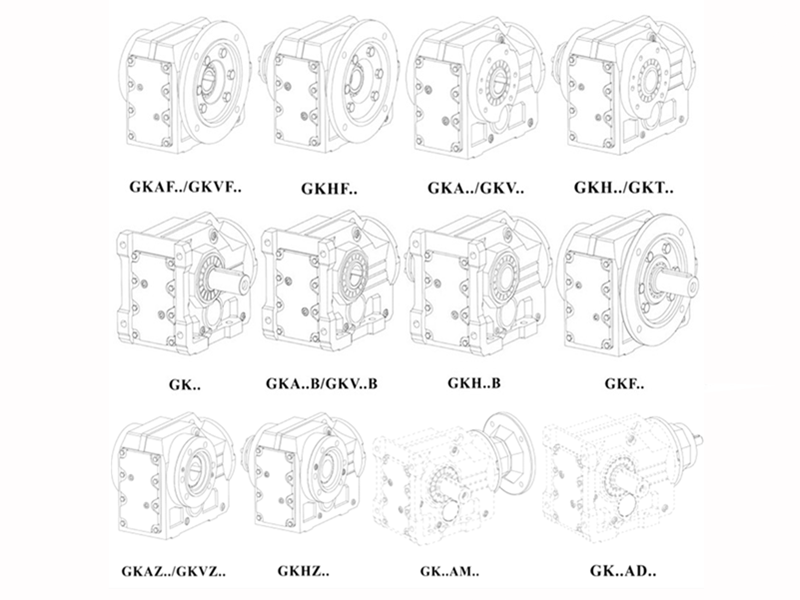

K87DRN180LC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
K87DRN180LC4減速機馬達安裝尺寸圖紙：
K87DRN180LC4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
K系列減速機應用案例展示：
關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家
K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機
K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 22千瓦電動機減速機 K87DRN180LC4 K87DRE180LC4
