R17DV80S4詳細信息
R17DV80S4
訂購熱線：13360667204
關鍵詞：輸出轉數119.5圈/分鐘減速機電機_R17DV80S4_R17DRN80S4_輸出轉數119.5圈一分鐘減速電機_一分鐘轉119.5圈齒輪減速箱馬達_一分鐘轉119.5圈減速器_一分鐘轉119.5圈電機減速機
R17DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17DV80S4 | 19.71 | 0.55KW | 70.0rpm | 75N.m | 19kg | 1580N | 1.15 |
| R17DV80S4 | 16.99 | 0.55KW | 81.0rpm | 65N.m | 19kg | 1560N | 1.30 |
| R17DV80S4 | 15.84 | 0.55KW | 87.0rpm | 60N.m | 19kg | 1540N | 1.40 |
| R17DV80S4 | 13.84 | 0.55KW | 100rpm | 53N.m | 19kg | 1510N | 1.60 |
| R17DV80S4 | 12.98 | 0.55KW | 106rpm | 49N.m | 19kg | 1490N | 1.70 |
| R17DV80S4 | 11.45 | 0.55KW | 121rpm | 44N.m | 19kg | 1460N | 1.85 |
| R17DV80S4 | 10.15 | 0.55KW | 136rpm | 39N.m | 19kg | 1430N | 2.00 |
| R17DV80S4 | 8.63 | 0.55KW | 160rpm | 33N.m | 19kg | 1380N | 2.20 |
| R17DV80S4 | 7.55 | 0.55KW | 183rpm | 29N.m | 19kg | 1290N | 1.95 |
| R17DV80S4 | 7.04 | 0.55KW | 196rpm | 27N.m | 19kg | 1270N | 2.00 |
| R17DV80S4 | 6.15 | 0.55KW | 224rpm | 23N.m | 19kg | 1230N | 2.30 |
| R17DV80S4 | 5.76 | 0.55KW | 239rpm | 22N.m | 19kg | 1220N | 2.40 |
| R17DV80S4 | 5.09 | 0.55KW | 271rpm | 19N.m | 19kg | 1180N | 2.60 |
| R17DV80S4 | 4.51 | 0.55KW | 306rpm | 17N.m | 19kg | 1150N | 2.80 |
| R17DV80S4 | 3.83 | 0.55KW | 360rpm | 15N.m | 19kg | 1100N | 3.10 |
R17DRN80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R17DRN80S4 | 19.71 | 0.55KW | 70.0rpm | 75N.m | 19kg | 1580N | 1.15 |
| R17DRN80S4 | 16.99 | 0.55KW | 81.0rpm | 65N.m | 19kg | 1560N | 1.30 |
| R17DRN80S4 | 15.84 | 0.55KW | 87.0rpm | 60N.m | 19kg | 1540N | 1.40 |
| R17DRN80S4 | 13.84 | 0.55KW | 100rpm | 53N.m | 19kg | 1510N | 1.60 |
| R17DRN80S4 | 12.98 | 0.55KW | 106rpm | 49N.m | 19kg | 1490N | 1.70 |
| R17DRN80S4 | 11.45 | 0.55KW | 121rpm | 44N.m | 19kg | 1460N | 1.85 |
| R17DRN80S4 | 10.15 | 0.55KW | 136rpm | 39N.m | 19kg | 1430N | 2.00 |
| R17DRN80S4 | 8.63 | 0.55KW | 160rpm | 33N.m | 19kg | 1380N | 2.20 |
| R17DRN80S4 | 7.55 | 0.55KW | 183rpm | 29N.m | 19kg | 1290N | 1.95 |
| R17DRN80S4 | 7.04 | 0.55KW | 196rpm | 27N.m | 19kg | 1270N | 2.00 |
| R17DRN80S4 | 6.15 | 0.55KW | 224rpm | 23N.m | 19kg | 1230N | 2.30 |
| R17DRN80S4 | 5.76 | 0.55KW | 239rpm | 22N.m | 19kg | 1220N | 2.40 |
| R17DRN80S4 | 5.09 | 0.55KW | 271rpm | 19N.m | 19kg | 1180N | 2.60 |
| R17DRN80S4 | 4.51 | 0.55KW | 306rpm | 17N.m | 19kg | 1150N | 2.80 |
| R17DRN80S4 | 3.83 | 0.55KW | 360rpm | 15N.m | 19kg | 1100N | 3.10 |

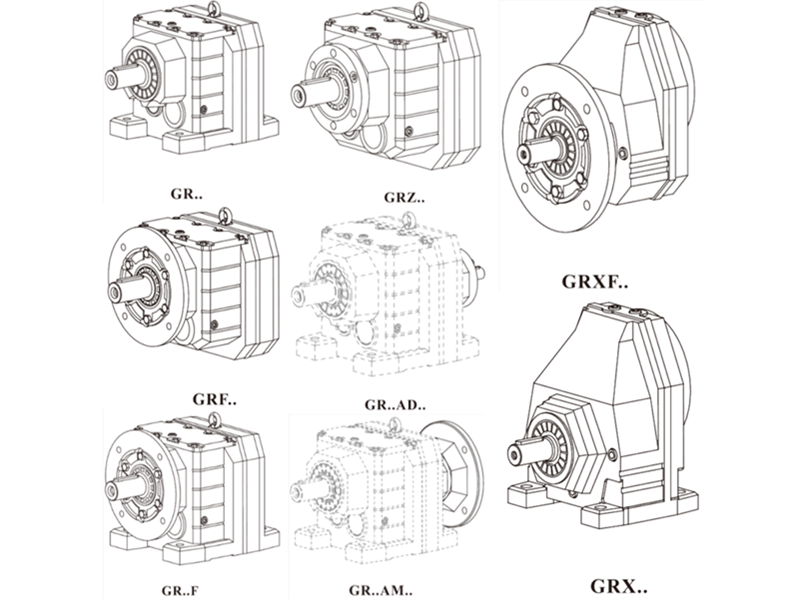

R17DV80S4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R17DV80S4電機減速機安裝尺寸圖紙
R17DV80S4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
