SAF67R37DM71S4詳細信息
SAF67R37DM71S4
關鍵詞：0.75KW電機能配多大臥式減速電機_SAF67R37DM71S4_SAF67R37DRS80K4
SAF67R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF67R37DM71S4 | 543 | 0.25KW | 2.40r/min | 650N.m | 44.5kg | 6280N | 0.85 |
| SAF67R37DM71S4 | 469 | 0.25KW | 2.80r/min | 550N.m | 44.5kg | 8390N | 1.05 |
| SAF67R37DM71S4 | 424 | 0.25KW | 3.10r/min | 495N.m | 44.5kg | 8880N | 1.15 |
| SAF67R37DM71S4 | 365 | 0.25KW | 3.60r/min | 440N.m | 44.5kg | 9320N | 1.30 |
| SAF67R37DM71S4 | 319 | 0.25KW | 4.10r/min | 380N.m | 44.5kg | 9700N | 1.50 |
| SAF67R37DM71S4 | 281 | 0.25KW | 4.60r/min | 335N.m | 44.5kg | 9960N | 1.70 |
SAF67R37DRS80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF67R37DRS80K4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| SAF67R37DRS80K4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| SAF67R37DRS80K4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| SAF67R37DRS80K4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |

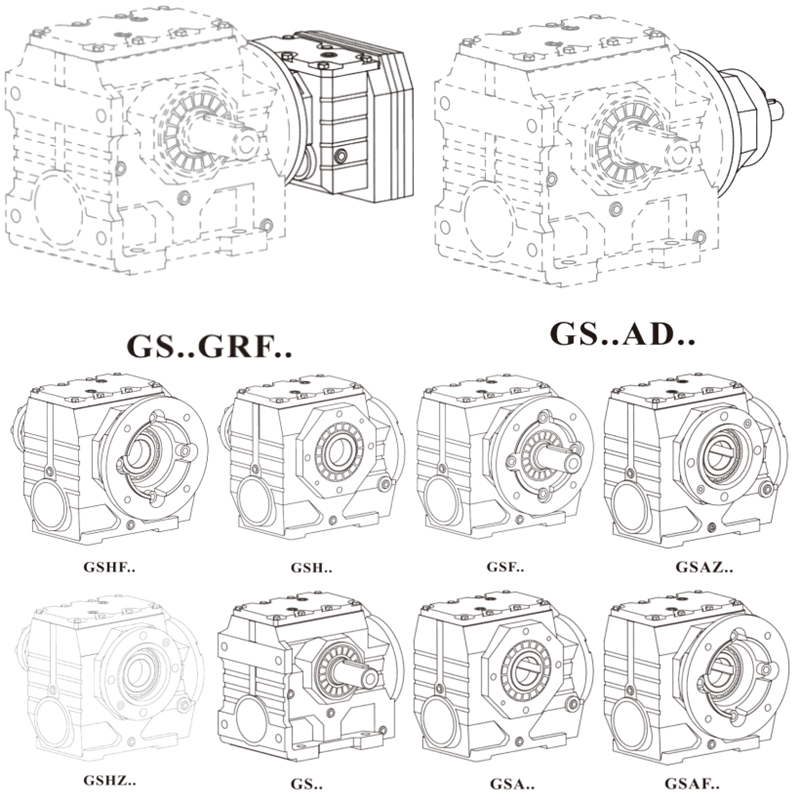

SAF67R37DM71S4電機減速器類型：
S67R37DM71S4底腳安裝-斜齒輪自鎖減速機
SA67R37DM71S4空心軸安裝-斜齒輪蝸輪蝸桿減速機
SAF67R37DM71S4是B5法蘭安裝款式-斜齒輪蝸輪蝸桿減速機
SAZ67R37DM71S4是B14法蘭空心軸安裝-斜齒輪蝸輪蝸桿減速機
SF67R37DM71S4是B5法蘭實心軸安裝-斜齒輪蝸輪蝸桿減速機
SH67R37DM71S4是空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHF67R37DM71S4是B5法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHZ67R37DM71S4是B14法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA67/TR37DM71S4扭力臂空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH67/TR37DM71S4是扭力臂空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA67BR37DM71S4底腳空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH67BR37DM71S4底腳空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
ST67R37DM71S4實心軸輸出扭力臂安裝-斜齒輪蝸輪蝸桿減速機

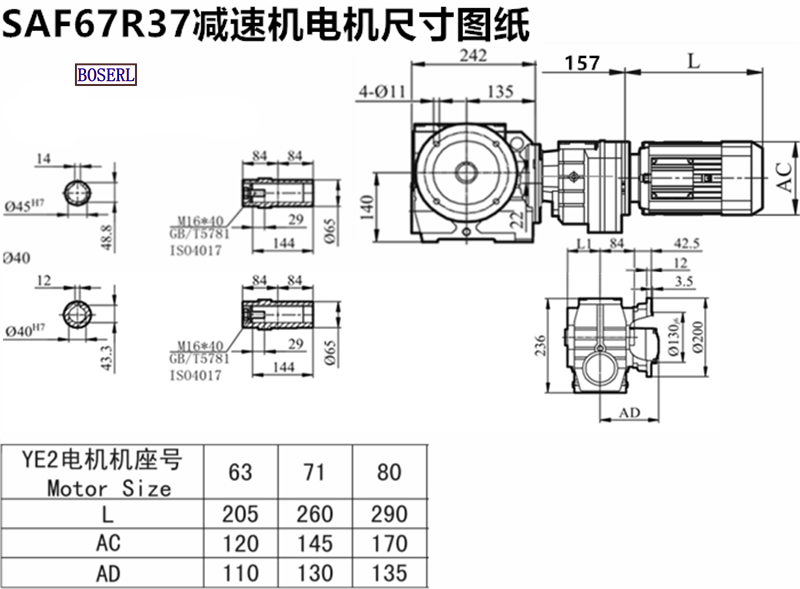

SAF67R37DM71S4電機減速器安裝尺寸圖紙
SAF67R37DM71S4電機減速器生產工廠展示：看廠請?zhí)崆叭祛A(yù)約法蘭式減速機
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.75KW電機能配多大臥式減速電機 SAF67R37DM71S4 SAF67R37DRS80K4
