SAF87R57DV71S4詳細信息

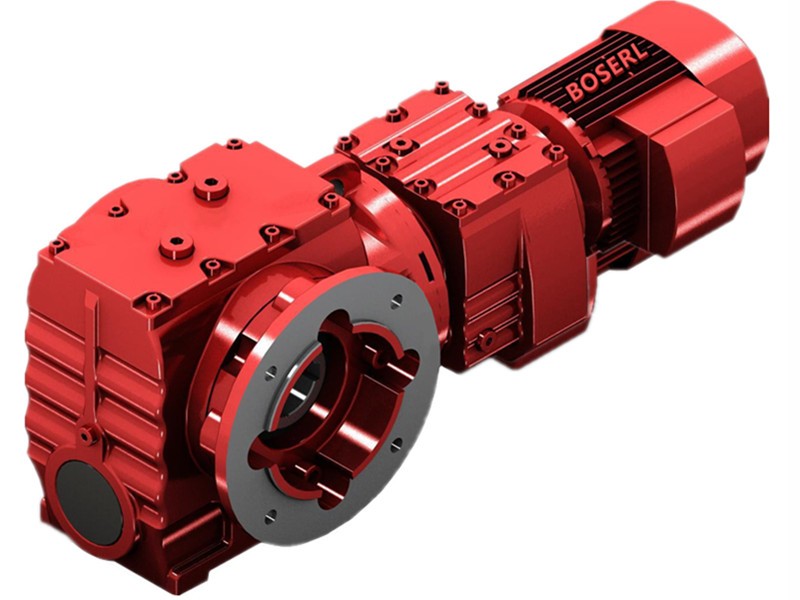

SAF87R57DV71S4
關鍵詞：0.75KW用什么立式齒輪減速電機_SAF87R57DV71S4_SAF87R57DRE80K4
SAF87R57DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87R57DV71S4 | 2905 | 0.25KW | 0.45r/min | 2930N.m | 128kg | 22200N | 0.85 |
| SAF87R57DV71S4 | 2586 | 0.25KW | 0.50r/min | 2560N.m | 128kg | 27400N | 1.00 |
| SAF87R57DV71S4 | 2335 | 0.25KW | 0.56r/min | 2290N.m | 128kg | 27900N | 1.10 |
| SAF87R57DV71S4 | 2054 | 0.25KW | 0.63r/min | 1990N.m | 128kg | 28400N | 1.25 |
| SAF87R57DV71S4 | 1824 | 0.25KW | 0.71r/min | 1770N.m | 128kg | 28800N | 1.40 |
| SAF87R57DV71S4 | 1631 | 0.25KW | 0.80r/min | 1580N.m | 128kg | 29100N | 1.60 |
| SAF87R57DV71S4 | 930 | 0.25KW | 1.40r/min | 930N.m | 128kg | 29700N | 2.70 |
SAF87R57DRE80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87R57DRE80K4 | 1332 | 0.55KW | 1.00r/min | 2800N.m | 133kg | 25400N | 0.90 |
| SAF87R57DRE80K4 | 1191 | 0.55KW | 1.20r/min | 2530N.m | 133kg | 27400N | 1.00 |
| SAF87R57DRE80K4 | 1032 | 0.55KW | 1.30r/min | 2200N.m | 133kg | 28100N | 1.15 |
| SAF87R57DRE80K4 | 930 | 0.55KW | 1.50r/min | 2030N.m | 133kg | 28400N | 1.25 |
| SAF87R57DRE80K4 | 831 | 0.55KW | 1.70r/min | 1840N.m | 133kg | 28700N | 1.35 |
| SAF87R57DRE80K4 | 719 | 0.55KW | 1.90r/min | 1600N.m | 133kg | 29000N | 1.55 |
| SAF87R57DRE80K4 | 624 | 0.55KW | 2.20r/min | 1390N.m | 133kg | 29300N | 1.80 |
| SAF87R57DRE80K4 | 558 | 0.55KW | 2.50r/min | 1260N.m | 133kg | 29400N | 2.00 |
| SAF87R57DRE80K4 | 435 | 0.55KW | 3.20r/min | 1010N.m | 133kg | 29700N | 2.40 |
SAF87R57DV71S4電機減速器類型：
S87R57DV71S4底腳安裝-斜齒輪自鎖減速機
SA87R57DV71S4空心軸安裝-斜齒輪蝸輪蝸桿減速機
SAF87R57DV71S4是B5法蘭安裝款式-斜齒輪蝸輪蝸桿減速機
SAZ87R57DV71S4是B14法蘭空心軸安裝-斜齒輪蝸輪蝸桿減速機
SF87R57DV71S4是B5法蘭實心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87R57DV71S4是空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHF87R57DV71S4是B5法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHZ87R57DV71S4是B14法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA87/TR57DV71S4扭力臂空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87/TR57DV71S4是扭力臂空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA87BR57DV71S4底腳空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87BR57DV71S4底腳空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
ST87R57DV71S4實心軸輸出扭力臂安裝-斜齒輪蝸輪蝸桿減速機

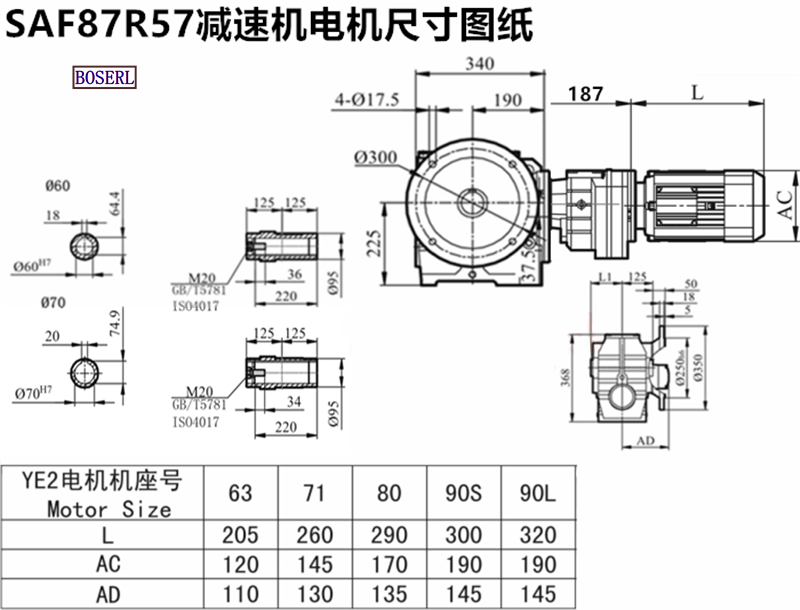

SAF87R57DV71S4電機減速器安裝尺寸圖紙
SAF87R57DV71S4電機減速器生產工廠展示：看廠請?zhí)崆叭祛A約法蘭式減速機
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.75KW用什么立式齒輪減速電機 SAF87R57DV71S4 SAF87R57DRE80K4
